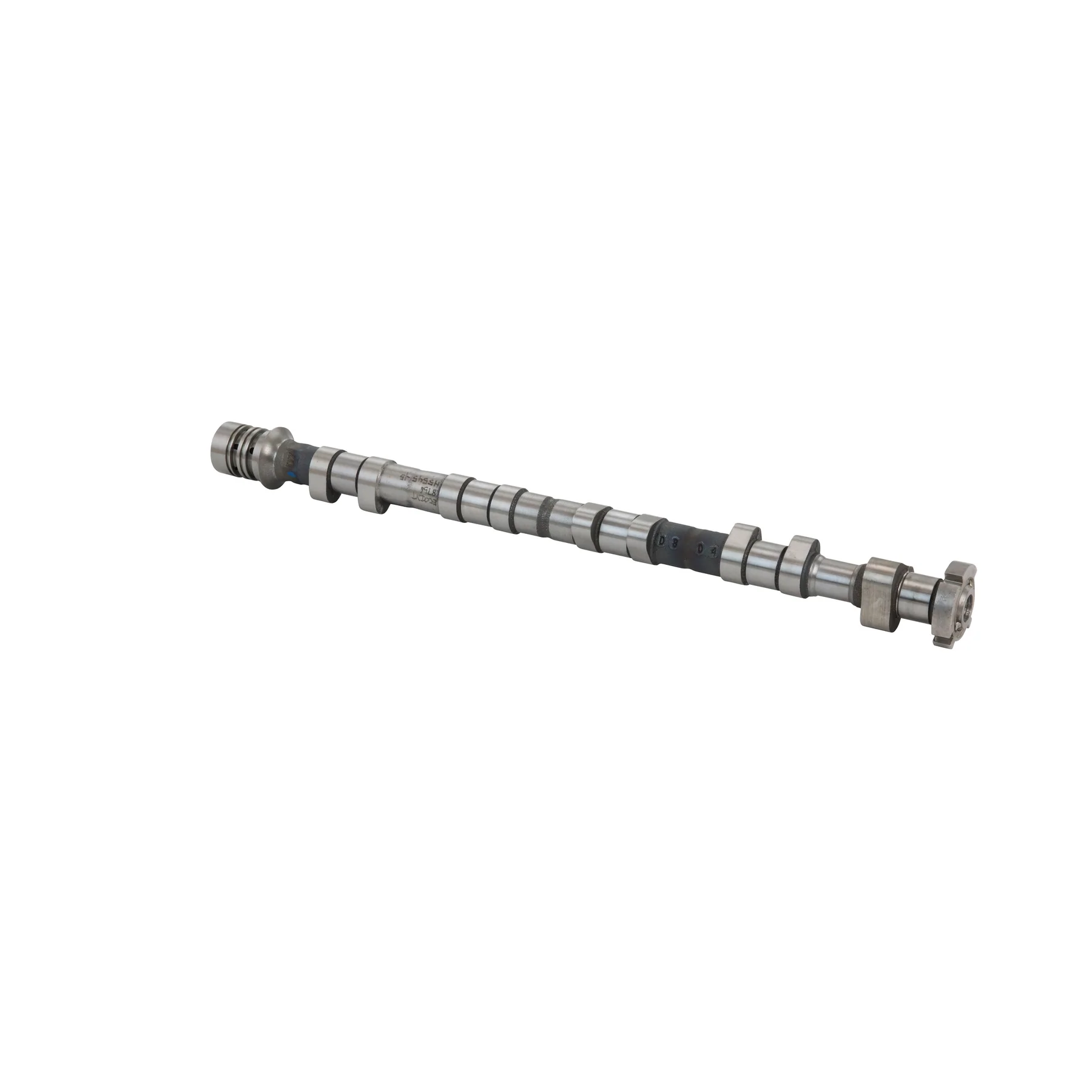

LNF/LHU INTAKE CAMSHAFT WITH UPGRADED FUEL PUMP LOBE[LNF LDK LHU]
Price: $247.50
Reviews
This product was added to our catalog on Wednesday 07 Sep, 2022.
Installing this cam with a larger fuel pump lobe does several things:
1. Increases available fuel by 20%. This gives you potential to make 20% more power than you could with the stock cam before running out of fuel, or getting the P0087 code "Fuel Rail/System Pressure - Too Low".
2. It allows you to adjust the tune for higher fuel pressure. When you do this, you can shorten the pulse window and optimize the tune. Doing this alone can yield up to 8HP with no other changes to the car.
The LNF and LHU intake cams are the same. This is based on a brand new stock LNF/LHU intake cam with a larger fuel pump lobe.
Installs as a stand alone product. No need for tuning or changing valve springs.
You can gain HP by tuning, and changing valve springs has its benefit, but they are not required when using this product.
What is direct injection?
The 2.0 liter LNF engine features direct injection technology. While typical port fuel injection sprays fuel into the runners of the intake manifold, direct injection means that the fuel is actually sprayed directly into the combustion chamber. Advantages to this design include increased power and increased fuel economy, as well as other tuning capability improvements. The down-side to this type of injection is mainly the cost and availability of upgraded components. While port fuel injection systems can be upgraded to support higher horsepower levels by simply swapping out the injectors and/or installing a larger fuel pump in the tank, direct injection users are not as fortunate. Due to the placement of the fuel injectors, fuel pressure must be increased substantially in order to overcome the high pressures present in the combustion chamber. While port fuel injection pressure is typically in the 60psi range, direct injection requires fuel pressures in excess of 2000 psi. To achieve this pressure, the LNF uses a mechanical fuel pump driven by the intake camshaft. While the factory pump can easily support over 450 ft lbs of torque and more than 500whp at 6000 rpms while running gasoline, switching to E85 increases fuel demands enough to decrease max torque potential to less than 400 ft lbs and horsepower at 6000 rpm to less than 400. Current upgrade offerings to this pump are limited and cost well over $1000.
The stock camshaft bolts are TTY and should be replaced when installing cams, we stock them here.
